We have seen this happen more times than we can count.

A business owner gets excited about branding their delivery van. They brief a designer, get a design they love, submit it to the RTA, and then the rejection comes back. Two weeks gone. The vinyl has sometimes already been ordered. Now they are starting over, frustrated, and wondering what went wrong.

Here is what went wrong. The vehicle branding mockup was not done properly.

This is not a small detail you sort out at the end. The mockup is the single document the RTA uses to decide whether your application gets approved or rejected.

It is also what your client agrees to before you spend any money on materials. Get it wrong and you are looking at delays, resubmissions, wasted budgets, and in some cases a full reprint.

We handle RTA advertisement permits in Dubai every day at Printzone. We know exactly what gets applications approved on the first submission and exactly what gets them sent back. Let us walk you through everything.

What a Vehicle Branding Mockup Actually Is

A vehicle branding mockup is a photorealistic digital preview of exactly what your wrap will look like on the actual vehicle before anything is printed or installed.

Not a rough sketch. Not a general idea of the layout. A precise, accurate visual showing exactly where every logo sits, how large every piece of text is, what the Arabic content looks like relative to the English, and how the full design reads from every required angle.

You need it for two reasons. The RTA will not process your RTA advertisement permit application without it. And your client needs to see and approve exactly what they are paying for before production begins. Both of these are non-negotiable.

Why the RTA Takes Mockups This Seriously

The RTA is not reviewing your application to judge whether the design looks attractive. They are checking a compliance list. Every item on that list needs to be clearly visible and verifiable in your mockup submission.

When the mockup is done correctly, the review process is straightforward. The inspector can see that text is correctly sized, Arabic content meets the 50% requirement, windows are not obstructed, prohibited elements are absent, and the design matches the actual vehicle dimensions. Application approved. Move to installation.

When the mockup is incomplete or non-compliant, the application goes into a back-and-forth cycle that can cost weeks. We have seen businesses lose an entire month to resubmissions because of issues that would have taken five minutes to fix at the design stage.

The window obstruction is in the wrong place? Move the graphic two centimeters. The Arabic text is 47% of the English height instead of 50%. Scale it up slightly. These are free fixes at the mockup stage. Finding them after installation means removing and reprinting the wrap, which in Dubai costs anywhere from AED 3,000 to AED 15,000 depending on the vehicle size and wrap type.

A clean, compliant vehicle branding mockup gets approved in under a week. A poorly prepared one sits in review while you chase updates and resubmit corrected files.

There is another reason the mockup matters beyond the RTA. When a client approves a detailed, accurate mockup in writing, there is no ambiguity about the final result. No “this is not what I imagined” when the wrap goes on. The mockup is the agreement. Everyone saw it, everyone signed off, and everyone knows exactly what was agreed.

The Two Mockups Every Project Actually Needs

This is something most businesses and even some branding companies do not realize. You need two separate mockup versions for every vehicle branding project in Dubai. Same design, different presentation, different purpose.

Client Mockup

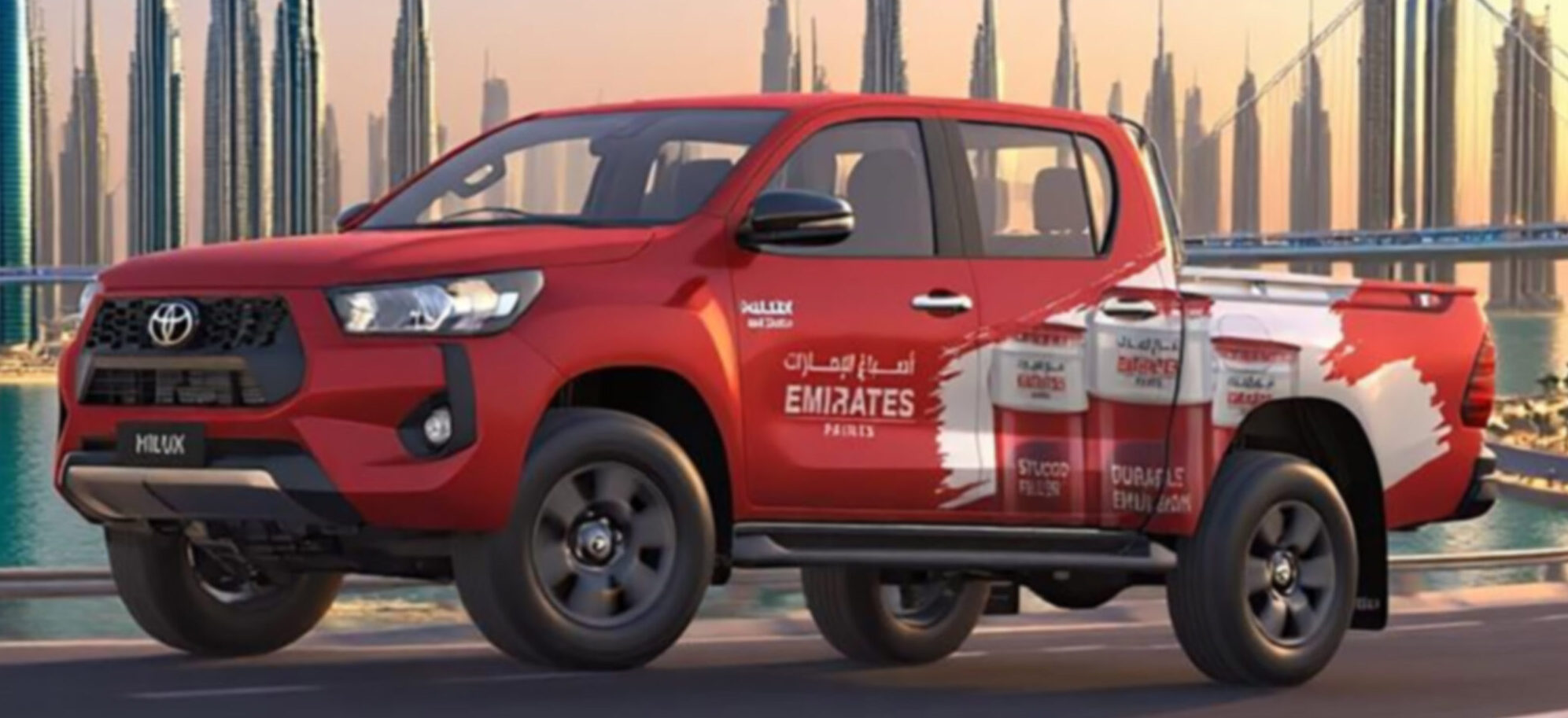

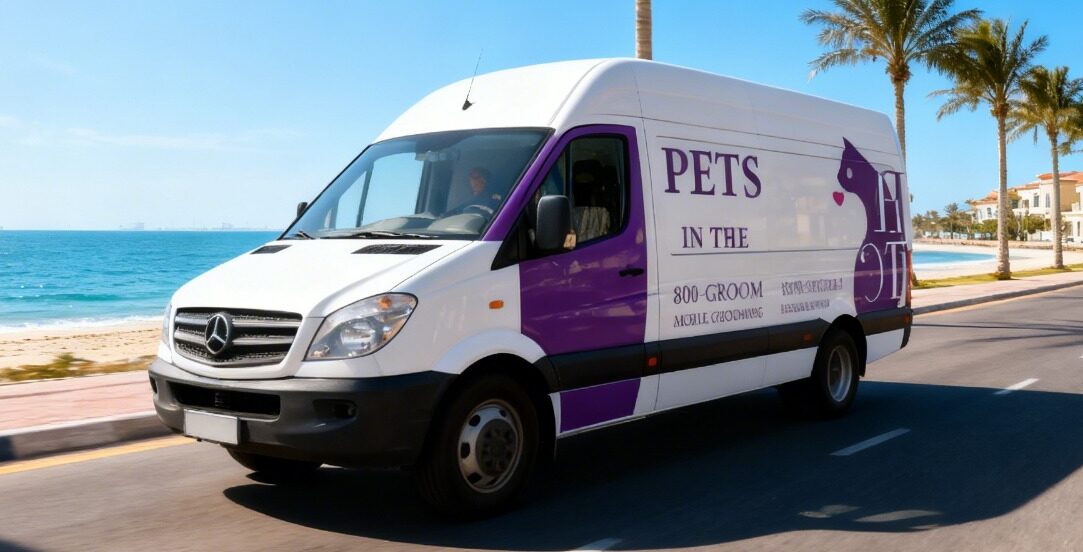

The client mockup is the one that builds excitement and gets fast approvals. Place the vehicle in a relevant context. Show it on a Dubai road, outside a relevant business location, or simply against a clean branded background. This version should look polished and professional. It is the version that makes your client feel confident about their investment and gets them to say yes quickly.

RTA Submission Mockup

The RTA submission mockup is entirely different in presentation. White background. All four sides of the vehicle are shown clearly. Every technical detail is visible and measurable. No decorative backgrounds, no shadows, nothing that could obscure any element the inspector needs to verify. This is the version that gets your RTA advertisement permit approved.

Do not submit the client version to the RTA. The presentation style will not meet their review requirements. Do not show the RTA version to your client first. It looks clinical and will raise unnecessary questions about the design quality.

Both versions should be exported from the same master design file so that every detail is identical between them. Create both, use each for its intended purpose, and your project moves forward without friction.

What the RTA Is Actually Checking in Your Mockup

Understanding what the RTA inspector is looking for makes it much easier to prepare a submission that passes on the first attempt.

Exact Vehicle Match

A generic van template downloaded from a free resource will not work. If the vehicle being wrapped is a 2023 Toyota Hiace, the mockup must use an accurate 2023 Toyota Hiace template with the correct door handle positions, window dimensions, and body lines. RTA inspectors know vehicle models. They can identify when the wrong template has been used and the application will be rejected.

All Four Sides without Exception

Driver side, passenger side, front, and rear. If there is any branding on the roof, that view must be included as well. Submitting two or three sides because the others look similar is an automatic rejection trigger. The RTA requires complete visual documentation of every branded surface.

Text Readable at Real-World Scale

Text that looks perfectly readable on a design screen at full zoom can be completely illegible when the wrap is actually on the vehicle. Check what size your phone number and service description will actually be on the van, not just how they appear in the file. If the text will be under a readable size in real life, the mockup will not pass review.

Arabic Text at the Correct Height

This is the most common reason RTA advertisement permit applications get rejected in Dubai. The Arabic text on your design must be at least 50% of the height of the English text. Not approximately 50%. Not close to 50%. The RTA measures this. A ratio of 47% or 48% will trigger rejection just as firmly as a design with no Arabic at all. Build the Arabic text to the correct size from the very beginning of the design process.

Clean White Background

The submission mockup must have a plain white or very light neutral background. Scenic backgrounds, lifestyle photography, shadow effects, and gradient backdrops all make it harder for inspectors to verify compliance details clearly. Save those presentations for your client version.

Clear of Restricted Zones

Your branding cannot cover headlights, taillights, license plates, or windows beyond what is permitted. The rear windshield is the only window where perforated one-way vision vinyl is allowed and only at a maximum of 50% coverage. Front windshield and side windows must remain completely clear. There are specific clearance zones the RTA enforces. Violating any of them results in rejection regardless of how well the rest of the design complies.

No Prohibited Design Elements

QR codes and barcodes are completely banned from vehicle branding designs in Dubai. Real photographs of people, national flags, religious symbols, smoking-related imagery, and 3D effects are all prohibited. If any of these appear in your mockup, the application will be rejected at the content review stage before the technical compliance check even begins.

How to Build a Vehicle Branding Mockup That Passes RTA

Here is the step-by-step process we follow at Printzone for every RTA advertisement permit submission in Dubai.

Start with the Exact Vehicle Template

Source or purchase a professional template for the specific make, model, and year of the vehicle being wrapped. Free templates from manufacturer websites are often low quality and inaccurate at close inspection. Professional template libraries cost more but provide the accuracy that RTA review requires.

Set up the File at the Correct Resolution

Minimum 3,000 by 2,000 pixels at 300 DPI. This is not optional. The RTA zooms into mockup files during review to verify compliance details. Low resolution files become blurry when zoomed and inspectors cannot verify what they need to see. Blurry details mean the application cannot be approved.

Place all Design Elements Accurately

Add logos, text, graphics, and all branding elements exactly as they will appear on the final wrap. Verify that Arabic text meets the 50% height requirement. Confirm that no elements are placed in restricted zones. Measure the clearances around windows and lights. Do not estimate these measurements.

Build all Required Views

Four sides minimum, more if branding appears on additional surfaces. Show the complete vehicle in each view without cropping. Every branded angle needs its own view in the submission.

Include All Technical Information

The company name must appear exactly as it is registered on the trade license. Contact details, license number, and material specifications should all be included in the submission package.

Export both Versions Correctly

The client version gets a polished, contextual background. The RTA submission mockup gets a clean white background with all technical details clearly visible. Both are exported from the same master file so the design is pixel-perfectly identical between them.

Get Client Sign-off Before Touching the RTA Portal

Show the client version to your client first. Collect their change requests. Make every revision they need. Get their final written approval, whether by email or WhatsApp. Then update the RTA version to match exactly and submit. Never submit to the RTA before the client has approved the design because revising an already submitted application adds significant time to the process.

Final Compliance Check Before Submission

Arabic text height at 50% or above? All four sides included? No prohibited elements? Text readable at real-world scale? White background on RTA version? 300 DPI file resolution? Trade license name matching exactly? Restricted zones clear? Only submit when every one of these is confirmed.

Mistakes That Get Vehicle Branding Permits Rejected Every Time

Using a Generic Vehicle Template

Every vehicle model has different proportions, door positions, and window dimensions. A template that fits one van will look distorted on another. The RTA can identify incorrect templates and will reject the application.

Submitting Fewer than Four Sides

There is no acceptable reason to omit any required view. Both sides look similar? Submit both anyway. Only branding on one side? Submit all four sides and show the unbranded sides as they are. The RTA requires complete documentation.

Arabic Text Is Below 50%

This single error is responsible for more RTA advertisement permit rejections in Dubai than any other compliance issue we see. Measure it properly. The RTA does.

Decorative Backgrounds on RTA Submissions

A Dubai skyline background might look impressive in a client presentation. In an RTA submission it obscures the details inspectors need to verify and will trigger a request for resubmission with a compliant background.

Text That Is Readable on Screen but Not in Real Life.

Always check what your text dimensions will be at actual vehicle scale. A phone number that looks perfect at 100% zoom in your design file might be completely unreadable when the wrap is physically on the van.

Encroaching on Window and Light Clearance Zones

The restricted zones around windows, lights, and license plates are precise. Being close to the boundary is not the same as being compliant. If any element falls within a restricted zone the entire application is rejected.

Assuming Client Approval Equals RTA Approval

Clients approve designs based on how they look. The RTA approves designs based on regulatory compliance. These are two different standards and a design can satisfy a client completely while still failing RTA review on technical grounds. Both requirements need to be addressed from the beginning of the design process, not treated as separate stages.

Watch the Video to Understand Dubai RTA Advertising Guideline 2026

RTA Vehicle Branding Guidelines in Dubai | PRINTZONE ADVERTISING LLC

The Bottom Line

When you do the mockup correctly from the start, getting RTA advertisement permit approval in Dubai is straightforward.

The businesses that sail through the process are not the ones with the biggest budgets or the most elaborate designs. They are the ones who treat the mockup as the most important step in the entire project, not an afterthought.
